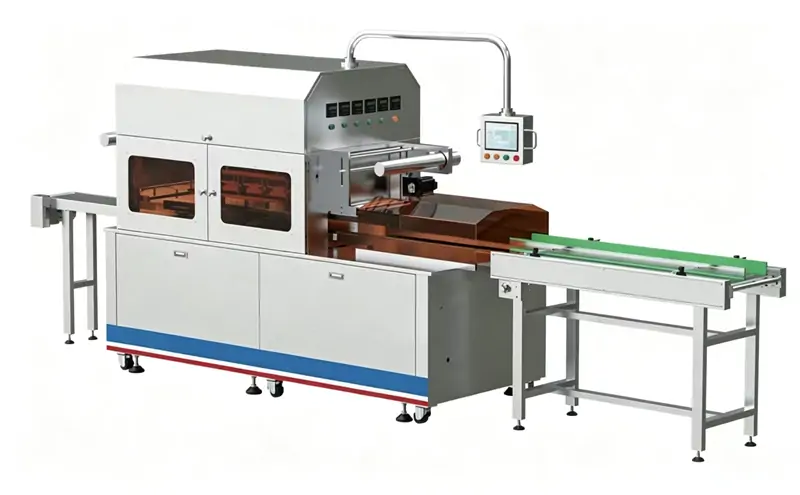

AM-750 Modified Atmosphere Packaging Machine

Mold Size	75028080 mm	Machine Weight	850 kg
Packing Speed	1500~1800 boxes/h	Total Power	15 kw
Overall Dimension	3000×1100×1750mm	Output Gas Flow	200L/min

The AM-750 Automatic Modified Atmosphere Packaging Machine is a compact high-efficiency MAP equipment for small and medium food factories. Its maximum output reaches 1800 boxes per hour, with accurate proportional mixing of food-grade nitrogen, carbon dioxide and oxygen. It extends the shelf life of cooked food, fresh meat, fruits and vegetables steadily, serving as a cost-effective packaging solution for mid-volume food production lines.

Inquire Now

Description

Made of SUS 304 stainless steel and alloy aluminum, AM-750 MAP machine complies with GMP food safety standards. Its precise gas mixing system delivers ≤2% error and ≥99.5% food-grade gas purity, realizing fully automatic box feeding, gas flushing, sealing and discharging to cut labor and waste. Zonde vacuum pump is optional.

Powered by Mitsubishi PLC with Weinview/Panasonic touchscreen HMI, the machine features Airtac pneumatic and Schneider electric parts for steady long-run operation. The customizable 750*280*80 mold allows fast disassembly for product changeovers and easy maintenance.

Boasting reliable gas supply, low-failure imported components and anti-corrosion stainless steel frame, this compact unit only needs ≥0.6Mpa air source and supports custom power. It is a cost-effective MAP solution for medium-output food factories seeking hygienic and stable packaging equipment.

Main Specification

Equipment Model	AM-750 Automatic Modified Atmosphere Packaging Machine
Mold Specification	75028080 mm
Packing Speed	1500 ~ 1800 boxes per hour
Gas Mixing Precision Error	≥99.5% (Food-grade N₂, CO₂, O₂)
Output Gas Pressure	0.8 Mpa
Output Gas Flow Rate	200 L/min
Total Power	15 kw
Power Supply	AC 220V 50HZ (customizable voltage available)
Overall Dimension (LWH)	3000mm1100mm1750mm
Machine Net Weight	850kg

Related Machinery

AM-850 Modified Atmosphere Packaging Machine

Mold Size	850880100 mm	Machine Weight	1020 kg
Packing Speed	2500~2800 boxes/h	Total Power	20 kw
Overall Dimension	3860×1230×1515 mm	Gas Output Pressure	0.8 Mpa

Inquire Now

AM-650 Modified Atmosphere Packaging Machine

Mold Size	85032080 mm	Machine Weight	750 kg
Packing Speed	1500~1800 boxes/h	Total Power	12 kw
Overall Dimension	4300×1300×1550mm	Output Gas Flow	300L/min

Inquire Now

Industries

Rotary premade pouch pick fill seal machine is widely used for various products in all kinds of pouches. With a maximum speed of 100 bags per minute, our machine can meet the demands of high-volume production.

Here're some industires you can use in:

◎ Solid -- Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.
◎ Granule -- Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
◎ Liquid -- Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
◎ Powder -- Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizers, etc.

Inquire Now
