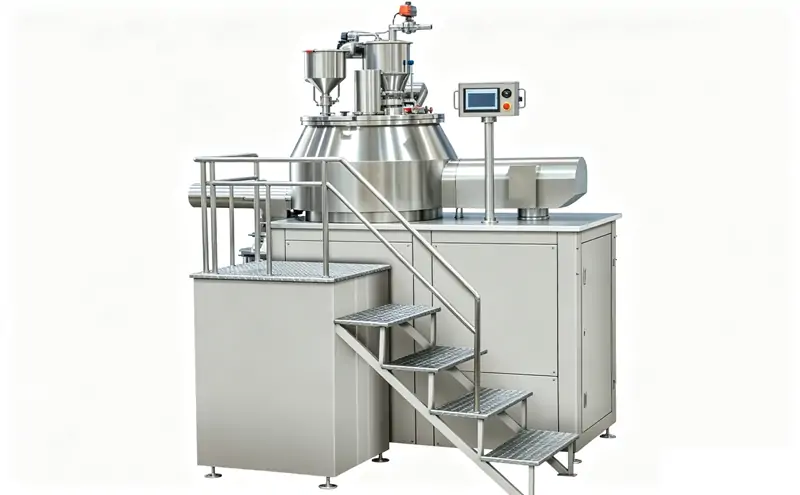

LM-800 Mixing Wet Granulator

Total Volume of Material Groove	800dm³
Working Capacity of Material Groove	200-550dm³
Feeding Quantity (Specific Gravity 0.5g/cm³)	100-270kg
Max Inside Diameter of Material Groove	1250mm
Rotational Speed of Stirring Paddle	20-200r.p.m
Rotational Speed of Cutter	50-3000r.p.m

Inquire Now

Description

The LM-800 High-Efficiency Mixing Wet Granulator is designed for high-capacity, continuous production in demanding industrial environments. Boasting high-performance motors, dual variable-frequency control, and an integrated jacketed cooling system, it delivers consistent, reliable results for large-scale manufacturing in the pharmaceutical, food, and chemical industries.

Main Specification

Total Volume of Material Groove	800dm³	Height of Discharge Outlet	1260mm
Working Capacity of Material Groove	200-550dm³	Total Height	2850mm
Feeding Quantity (Specific Gravity 0.5g/cm³)	100-270kg	Lid height	3450mm
Max Inside Diameter of Material Groove	1250mm	Machine Weight	4000kg
Rotational Speed of Stirring Paddle	20-200r.p.m	Air Pressure	0.6-0.7Mpa
Power of Stirring Motor	37Kw	Cooling Water Connection	0.1-0.2Mpa
Rotational Speed of Cutter	50-3000r.p.m	Water Consumption	6L/mni
Power of Cutter Motor	15Kw	Air Connection	G3/G8/G16mm
Dimensions of Front Discharge (Model Not-Standard)	3500*2500mm	Cooling Water Connection	G3/G8/G16mm
Dimensions of Left Discharge (Model Standard)	3100*2550mm	Power Cord Cross-Sectional Area	25mm²
