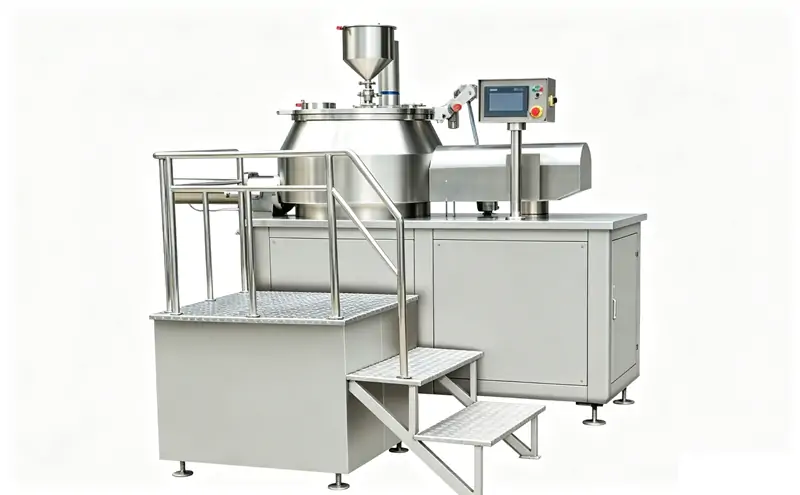

LM-600 Mixing Wet Granulator

Total Volume of Material Groove	600dm³
Working Capacity of Material Groove	150-420dm³
Feeding Quantity (Specific Gravity 0.5g/cm³)	75-210kg
Max Inside Diameter of Material Groove	1150mm
Rotational Speed of Stirring Paddle	20-200r.p.m
Rotational Speed of Cutter	50-3000r.p.m

Inquire Now

Description

The LM-600 High-Efficiency Mixing Wet Granulator offers superior capacity and performance for high-volume industrial granulation. Fitted with a user-friendly touch-screen interface, programmable PLC control, and integrated automated safety features, it ensures precision, high throughput, and operational safety in pharmaceutical and chemical production.

Main Specification

Total Volume of Material Groove	600dm³	Total Height	2550mm
Working Capacity of Material Groove	150-420dm³	Lid Height	3150mm
Feeding Quantity (Specific Gravity 0.5g/cm³)	75-210kg	Machine Weight	3000kg
Max Inside Diameter of Material Groove	1150mm	Air pressure	0.6-0.7Mpa
Rotational Speed of Stirring Paddle	20-200r.p.m	Cooling Water Pressure	0.1-0.2Mpa
Power of Stirring Motor	30Kw	Water Consumption	6L/mni
Rotational Speed of Cutter	50-3000r.p.m	Air Connection	G3/G8/G16mm
Power of Cutter Motor	11Kw	Cooling Water Connection	G3/G8/G16mm
Dimensions of Front Discharge (Model Not-Standard)	3300*2300mm	Power Cord Cross-Sectional Area	25mm²
Dimensions of Left Discharge (Model Standard)	2900*2330mm	Packing Dimensions of Main Chassis	255015502560mm
Height of Discharge Outlet	1160mm	Gross weight	3350kg
