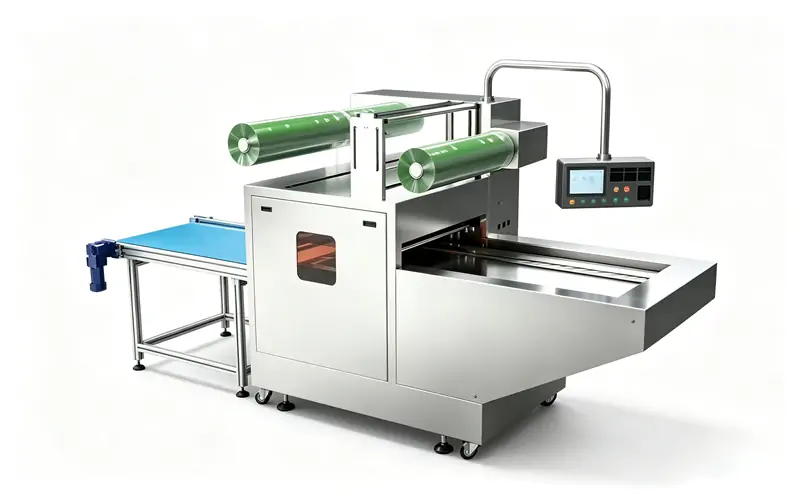

AM-550 Modified Atmosphere Packaging Machine

Mold Size	55028080 mm	Machine Weight	650 kg
Packing Speed	1200~1500 boxes/h	Total Power	10 kw
Overall Dimension	3000×1100×1750mm	Output Gas Flow	300L/min

The AM-550 Automatic Modified Atmosphere Packaging Machine is an entry-level compact MAP unit for small food manufacturers, with a maximum throughput of 1500 boxes per hour. It precisely mixes food-grade nitrogen, carbon dioxide and oxygen to extend shelf life for cooked food, fresh meat and vegetables, serving as an affordable small-batch packaging solution.

Inquire Now

Description

Built with SUS304 stainless steel and high-strength alloy aluminum, AM-550 MAP machine meets GMP food hygiene standards. Its precise gas mixing system delivers ≤2% error and ≥99.5% food-grade gas purity, performing fully automatic box feeding, gas flushing, sealing and discharging to lower labor and waste. Zonde vacuum pump is available as an optional accessory.

Fitted with Mitsubishi PLC and Weinview/Panasonic touchscreen HMI, the machine adopts original Airtac pneumatic parts and Schneider electric components for stable long-time operation. Its customizable 55028080 mold supports quick disassembly for fast product changeovers and simple daily maintenance.

Equipped with steady gas supply system and low-failure imported parts, this light-duty machine only requires ≥0.6Mpa air source and supports custom power supply. Compact, low-power and cost-effective, it is the ideal MAP equipment for small-scale food producers focusing on sanitation and stable basic performance.

Main Specification

Equipment Model	AM-550 Automatic Modified Atmosphere Packaging Machine
Mold Specification	55028080 mm
Packing Speed	1200 ~ 1500 boxes per hour
Gas Mixing Precision Error	≥99.5% (Food-grade N₂, CO₂, O₂)
Output Gas Pressure	0.8 Mpa
Output Gas Flow Rate	300 L/min
Total Power	10 kw
Power Supply	AC 220V 50HZ (customizable voltage available)
Overall Dimension (LWH)	3000mm1100mm1750mm
Machine Net Weight	650kg
